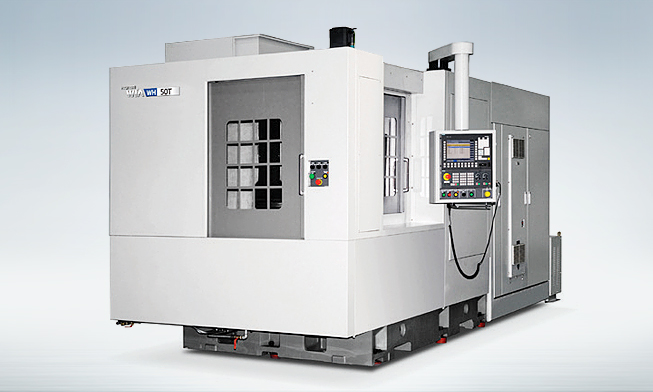

WH50T | WH50TB
产品简介

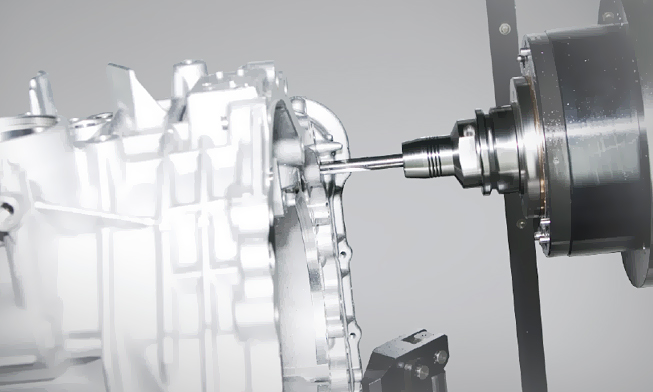

The WH50T and WH50TB are specialized models to machine automotive cylinder blocks/heads and case housings.

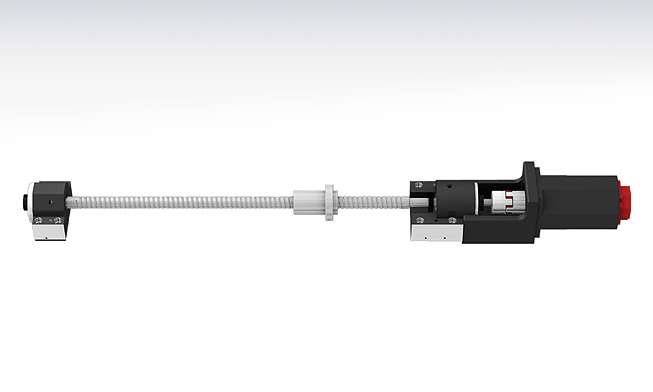

Large servo motors provide great performance when transferring heavy parts .

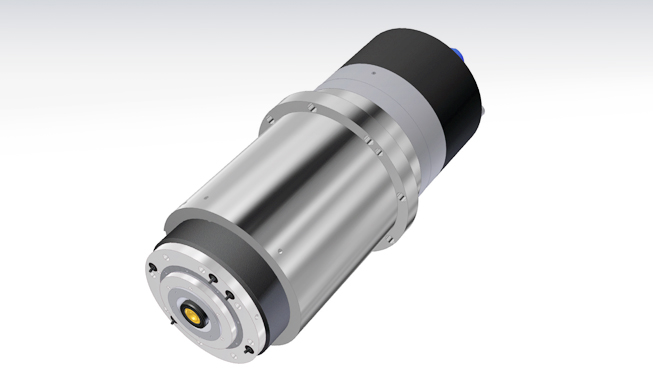

High performance built-in spindle motor for the machining of precision high quality powertrain components.
规格
| Description | Unit | WH50T | WH50TB |
|---|---|---|---|
| 工作台尺寸 | mm | ?630 | ?630 |
| 最大负荷 | kg | 750 | 750 |
| 主轴驱动方式 | - | Built in | Built in |
| 主轴锥度 | - | HSK-A63 | HSK-A100 |
| 主轴最高转速 | r/min | 16,000 | 10,000 |
| 主轴功率 | kW | 28 | 26 |
| 主轴最大扭矩 | Nm | 63 | 75 |
| 最大移送距离(X/Y/Z) | mm | 630/630/800 | 630/630/800 |
| 快移速度(X/Y/Z) | m/min | 60/60/60 | 60/60/60 |
| 导轨形式 | - | LM | LM |
| 刀库数量 | EA | 40 | 20 |
| 换刀节拍(Chip To Chip) | sec | 3.7 | 4 |
| CNC | - | S840D | S840D |
