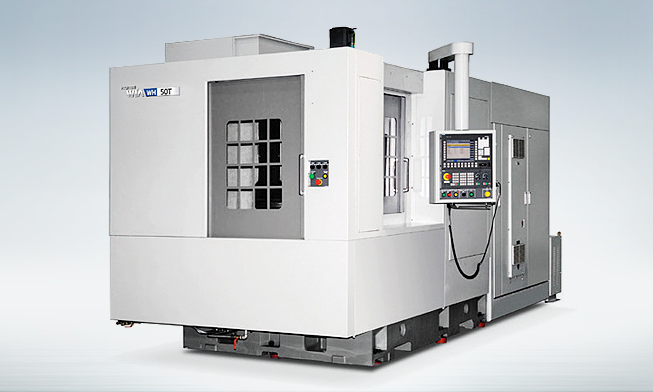

WH50C
产品简介

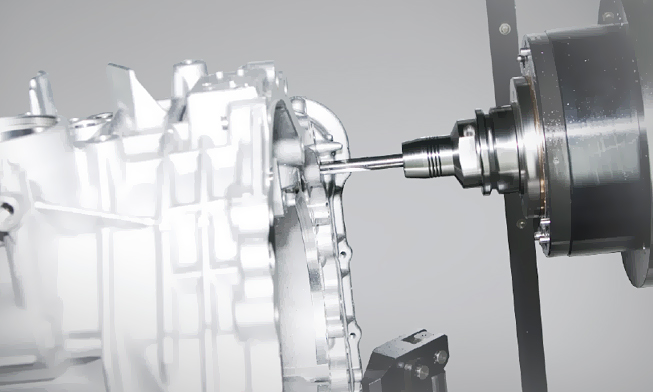

The WH50C is designed to machine automotive cylinder blocks/heads with 15,000r/min high-velocity spindle.
A variety machining processes are possible with A-axis, B-axis and AB-axis table.
规格
| Description | Unit | WH50C |
|---|---|---|
| 工作台尺寸 | mm | ?500 |
| 最大负荷 | kg | 900 |

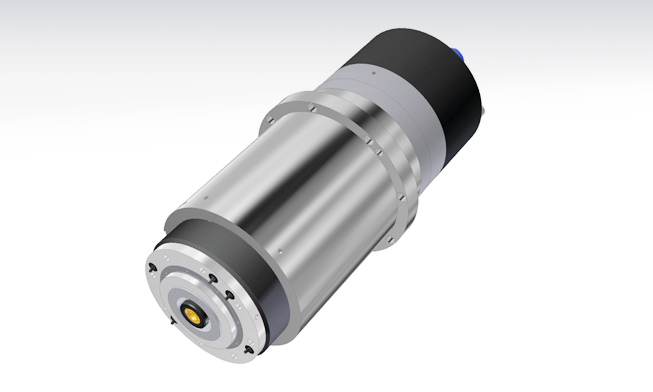

| 主轴驱动方式 | - | Built in |
| 主轴锥度 | - | HSK-A63 |
| 主轴最高转速 | r/min | 15,000 |
| 主轴功率 | kW | 26 |
| 主轴最大扭矩 | Nm | 75 |
| 最大移送距离(X/Y/Z) | mm | 630/560/560 |
| 快移速度(X/Y/Z) | m/min | 60/60/60 |

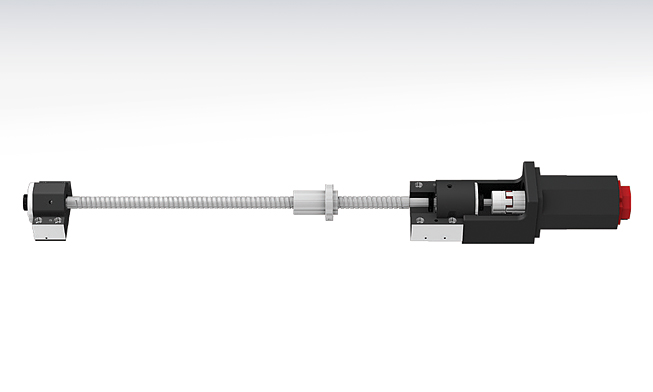

| 导轨形式 | - | LM |
| 刀库数量 | EA | 40 |
| 换刀节拍(Chip To Chip) | sec | 4.2 |
| CNC | - | S840D |
