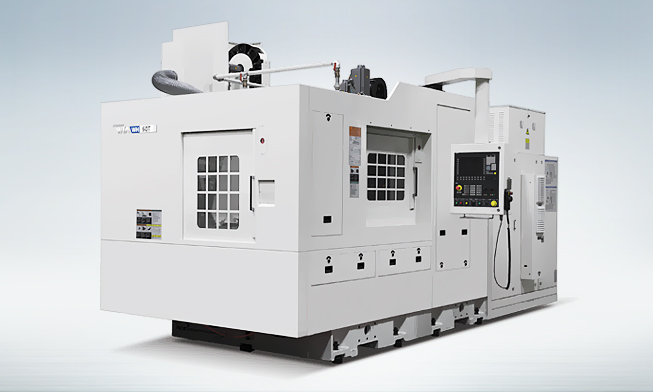

WH60T
产品简介

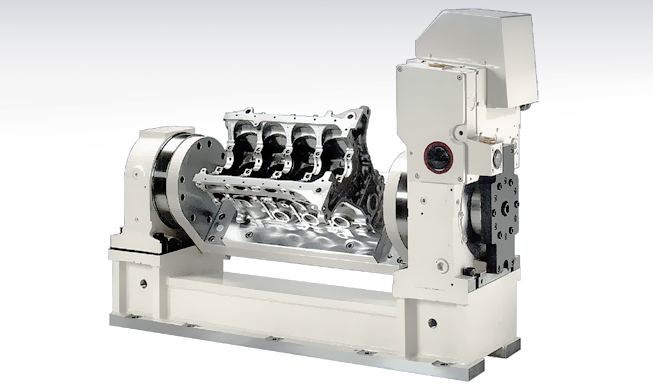

The WH60T is a specialized model to machine automobile cylinder automotive cylinder blocks/heads and case housings.
Large servo motors provide great performance when transferring heavy parts

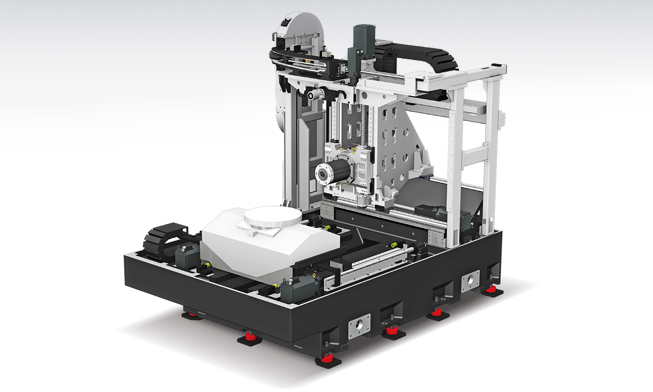

With its large work envelope, cylinder bore and crankshaft line boring are possible.
The main spindle achieves outstanding performance with output of 29.3kW (39.3HP) and 200N.m. of torque.
规格
| Description | Unit | WH60T |
|---|---|---|
| 工作台尺寸 | mm | ?600 |
| 最大负荷 | kg | 1,000 |
| 主轴驱动方式 | - | Built in |
| 主轴锥度 | - | HSK-A100 |
| 主轴最高转速 | r/min | 6000 |
| 主轴功率 | kW | 29.3 |
| 主轴最大扭矩 | Nm | 200 |
| 最大移送距离(X/Y/Z) | mm | 800/630/1,000 |
| 快移速度(X/Y/Z) | m/min | 60/60/60 |
| 导轨形式 | - | LM |
| 刀库数量 | EA | 2.2 |
| 换刀节拍(Chip To Chip) | sec | 6 |
| CNC | - | S840D |
