WH100T
产品简介

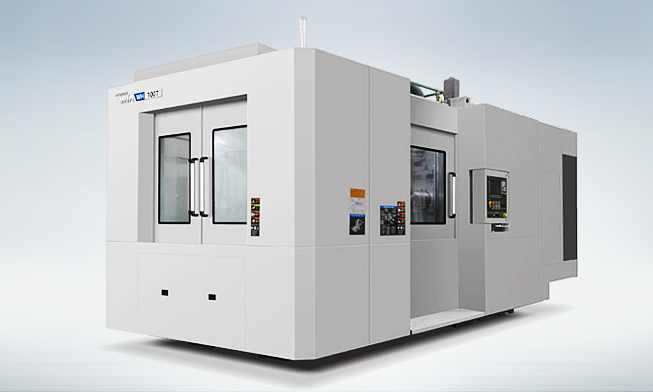

The WH100T is a specialized model to machine cylinder blocks/heads for buses and heavy-duty trucks.

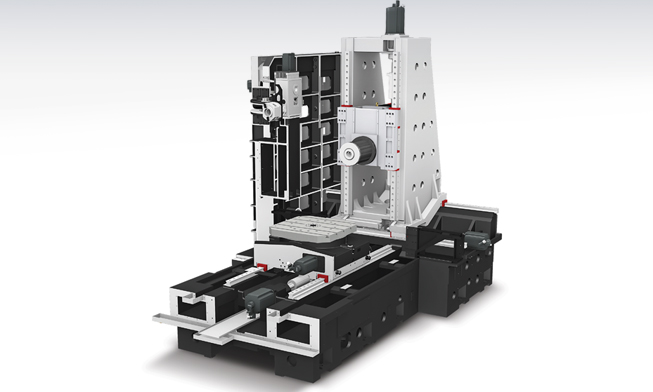

Designed through structural analysis, vibration is minimized and rigidity is increased.

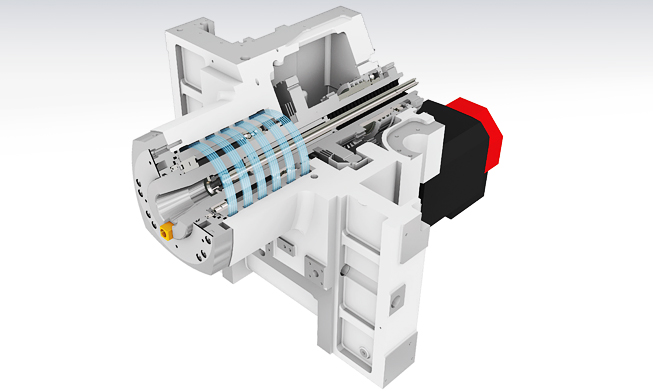

With its 2 step geared spindle, powerful cutting is guaranteed to machine large sized parts.

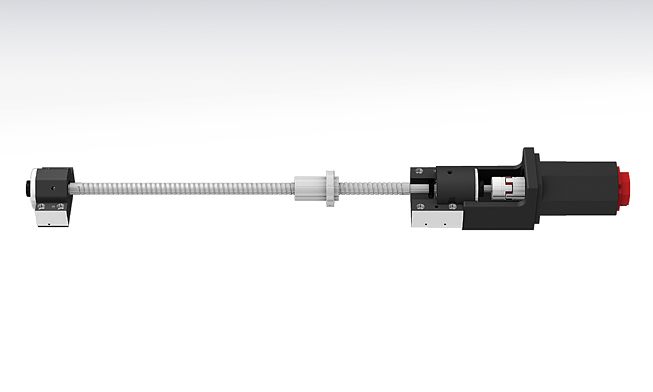

Equipped with 63mm (2.5″) wide cross roller bearing guideways and ball screw diameter of 63mm (2.5″), high rigidity is assured.
规格
| Description | Unit | WH100T |
|---|---|---|
| 工作台尺寸 | mm | ?800 |
| 最大负荷 | kg | 3,000 |
| 主轴驱动方式 | - | GEAR(2STEP) |
| 主轴锥度 | - | HSK-A100 |
| 主轴最高转速 | r/min | 4,500 |
| 主轴功率 | kW | 30 |
| 主轴最大扭矩 | Nm | 931.2 |
| 最大移送距离(X/Y/Z) | mm | 1,400/1,100/1,150 |
| 快移速度(X/Y/Z) | m/min | 40/40/40 |
| 导轨形式 | - | LM |
| 刀库数量 | EA | 40 |
| 换刀节拍(Chip To Chip) | sec | 6 |
| CNC | - | S840D |
